- Class F Insulated
- 50 Degree C Ambient
- 3 O’clock Conduit
- 3/8-16 UNC 2A RH Shaft Thread
- 3 1/2
- Service Factor: 1
- RPM: 3450
- Length without Shaft: 8.4
- 6A 230V

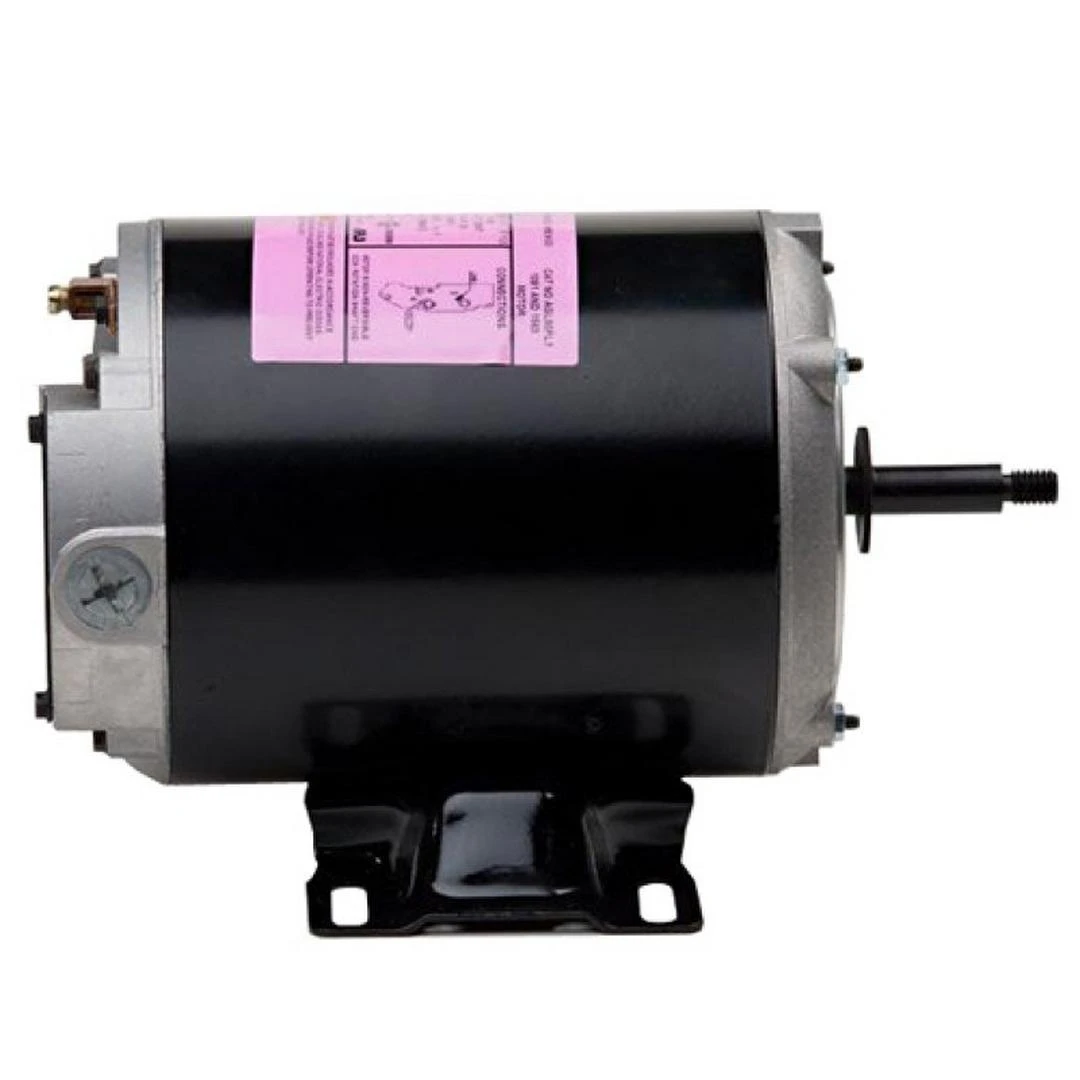

The Emerson 48 Frame Thru-Bolt Pool and Spa motor is designed with the latest technology in pump motor engineering. It offers advanced thermal protection and accommodates an open drip proof design, constructed with ventilation openings to prevent water entrance and damage. As a single speed motor, the Emerson 48 Frame Thru-Bolt motor runs at the same speed consistently for aggressive performance and dependability. With a full range of power levels and features offered, the Emerson 48 Frame Thru-Bolt Pool and Spa motor is efficient and fully reliable.
| Service Factor: | 1.00 – 1.25 |
| Horsepower: | 1 HP |
| Pool Type: | Above Ground |
| Voltage: | 230V |
| Flange Type: | Thru Bolt Mount |
| Speed Settings: | Single Speed |
| Rating Type: | Full-Rated |
| Energy Efficiency: | Standard |
| Motor Frame: | 48 Frame |
| Product Type: | Pool Motor |
| Manufacturer: | U.S. Motors Emerson |
| Product Type: | Pool Part |
